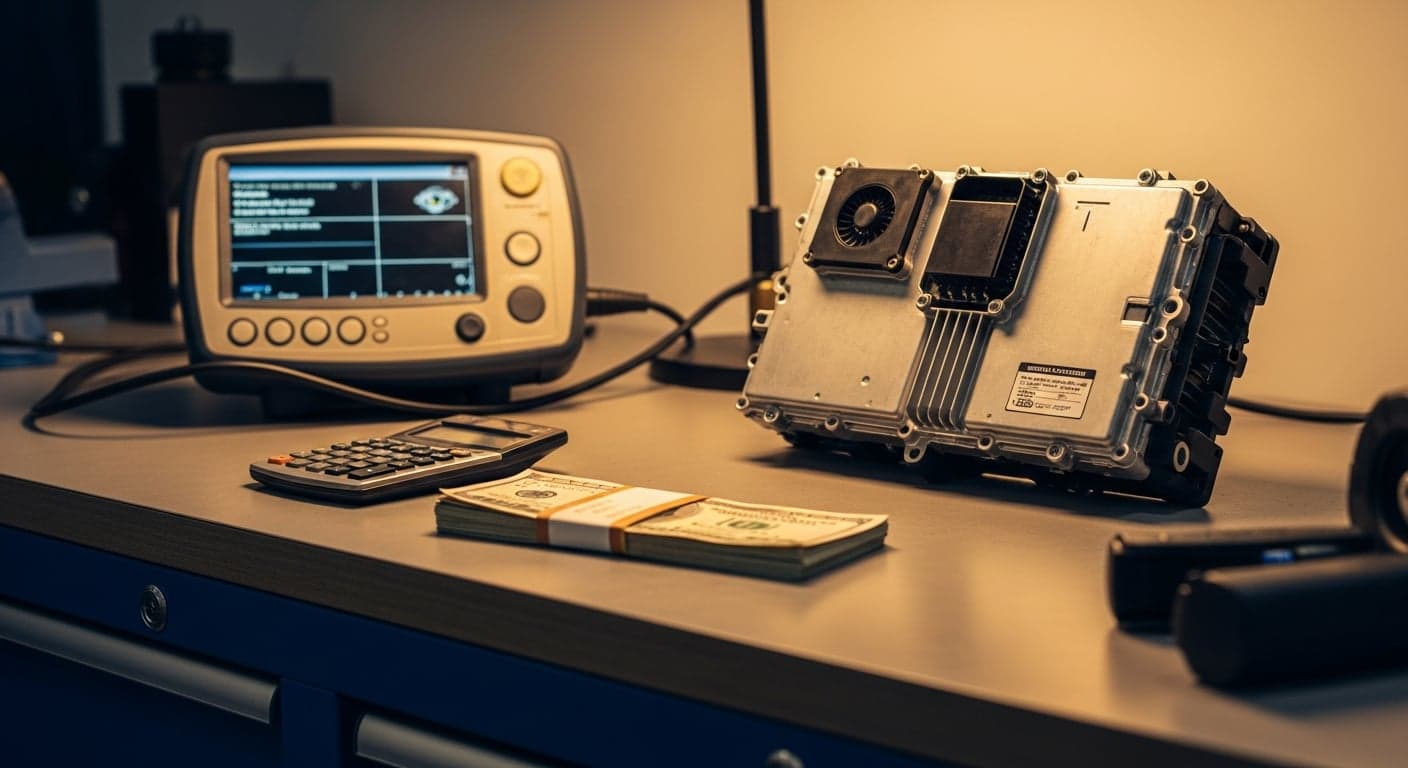

ECM Replacement Cost in 2026: Mobile vs Dealer Dallas
Direct answer
ECM (Engine Control Module) replacement cost in Dallas in 2026 ranges from $400–$1,800 depending on make, model, and whether you choose mobile or dealership service. Mobile specialists with Autel IM608 + manufacturer database licenses average $400–$900 all-in for most chassis; dealerships at Mercedes-Benz of Dallas, BMW of Dallas, AutoNation Toyota Las Colinas, and Town East Ford average $900–$1,800 + tow + 3–7 day appointment wait. The differential is real and reflects three structural factors: dealership labor rates (\$200+/hour vs $90–$130/hour mobile), corporate-inventory parts markup (30-60% above OEM cost), and the dealer-required tow + appointment slot. Most chassis can be programmed in your driveway via OBD; older platforms (2008–2014 Mercedes, BMW E-series CAS3, Audi MED9) sometimes require bench-level EEPROM reads.
ECM vs PCM: are they the same thing?
Technically different but practically interchangeable in everyday usage:
- ECM (Engine Control Module / Engine Control Unit): controls engine functions — fuel injection, ignition timing, emissions, throttle position, variable valve timing.
- PCM (Powertrain Control Module): controls engine AND transmission in an integrated module. Most modern domestics use PCM; many European luxury vehicles use separate ECM + TCM.
For cost purposes, this guide treats them together. The replacement process and pricing structure are essentially identical — the difference is whether you're replacing one combined module or one of two separate modules.
DFW market pricing by make (2026)
Market data collected from Dallas mobile operators (2026-Q1/Q2) cross-referenced against direct dealer quotes. Dealership data from J.D. Power 2024 OEM Service Cost Surveys for the DFW market.
| Vehicle | Mobile total | Dealer total (incl. tow) | Mobile saves | Mobile time |
|---|---|---|---|---|
| 2018 Ford F-150 (EEC-V/Copperhead) | $450–$650 | $850–$1,200 + tow | $400–$550 | 60–90 min |
| 2019 Honda CR-V | $500–$700 | $950–$1,300 + tow | $450–$600 | 60–90 min |
| 2017 Toyota Camry (Denso ECU) | $475–$700 | $900–$1,250 + tow | $425–$550 | 60–90 min |
| 2018 GMC Sierra (GM E38) | $500–$750 | $1,000–$1,400 + tow | $500–$650 | 75–105 min |
| 2019 BMW 540i (MSD81/MSV90) | $700–$1,000 | $1,400–$2,100 + tow | $700–$1,100 | 90–120 min |
| 2018 Mercedes-Benz E300 (MED17.9) | $750–$1,050 | $1,500–$2,200 + tow | $750–$1,150 | 90–120 min |
| 2017 Audi A6 (MED17.5) | $700–$950 | $1,400–$1,900 + tow | $700–$950 | 90–120 min |
| 2020 Range Rover Sport (Bosch ECU) | $750–$1,050 | $1,500–$2,000 + tow | $750–$950 | 90–120 min |
| 2018 Porsche Cayenne | $900–$1,400 | $1,700–$2,400 + tow | $800–$1,000 | 90–120 min |
| 2019 Jeep Grand Cherokee (PCM) | $500–$750 | $950–$1,400 + tow | $450–$650 | 60–90 min |
The five hidden costs that change the math
1. Tow cost ($100–$250 round-trip in Dallas): The dealer path always requires this when the engine won't start, which is the most common ECM failure mode. Mobile eliminates entirely.
2. Diagnostic-only fees ($185–$295 dealer; waived by most mobile operators when you book the repair): Per dealer service department policies, the diagnostic must be paid even if you decline the recommended repair. Mobile specialists waive when you book.
3. Opportunity cost of vehicle unavailability ($150–$500 over a 3–7 day appointment): Rental car ($40–$80/day), ride-share ($20–$50/day), or productivity loss. The dealer's 3–7 day appointment lag creates real out-of-pocket costs beyond the invoice.
4. Parts markup at dealer (30–60% above OEM cost per J.D. Power surveys): Mercedes/BMW/Range Rover dealerships in Dallas mark up ECM parts substantially. Mobile uses the same OEM-licensed software but sources modules from the same manufacturer-aftermarket channels at lower markup.
5. Mandatory ancillary services: Some dealers bundle ECM replacement with mandatory inspection fees ($35–$95) or "module activation" charges ($45–$125) that aren't always disclosed in the phone quote. The on-arrival number can exceed the phone quote by 10–25%.
Real all-in math for a 2018 Mercedes E300 ECM failure (representative scenario, 2026-Q2):
| Cost element | Mobile | Dealer |
|---|---|---|
| ECM part + labor | $900 | $1,750 |
| Tow | $0 | $150 |
| Diagnostic fee | $0 (waived) | $185 |
| Ancillary fees | $0 | $75 |
| Opportunity cost (4 days w/o vehicle) | $0 | $200 |
| Total | $900 | $2,360 |
When the dealer math actually wins
- Active manufacturer warranty (typically 5-year/60,000-mile powertrain): ECM is covered, dealer is free. Verify with manufacturer roadside hotline before paying out of pocket.
- Vehicle already at dealer for unrelated service: Consolidating ECM work into an existing brake job or transmission flush eliminates the tow and appointment costs.
- Brand-new chassis (2024+ EQS, L460 Range Rover, newest BMW G-series): Locksmith database may not yet support the specific ECU variant.
- Collector vehicle requiring OEM-stamped module: Some concours-judged vehicles benefit from manufacturer-branded part numbers.
- Insurance carrier requires dealer-direct billing: Some specialty insurance situations specify dealer-only repair.
Real ECM failure modes and what they signal
No-start, no codes: Most common; ECM has lost power or internal voltage regulator has failed. Often misdiagnosed as battery or starter; verify with diagnostic scan first.
No-start, multiple U-codes: Communication failure between ECM and other modules. Sometimes a wiring issue, not ECM itself. A qualified diagnostic distinguishes.
Intermittent stalling: ECM internal capacitors or transistors degrading. Vehicle runs fine when ECM is cool, stalls when hot. Bench-level capacitor replacement is sometimes a $200 repair instead of $700 module replacement.
Limp mode (reduced power): ECM detected a fault and is operating in safe-mode. Could be ECM internal or could be a sensor reporting bad data. Scan-tool diagnosis required.
Check Engine Light + correct codes: ECM is functioning, reporting a sensor or component fault. Replace the failing component, not the ECM.
Dealers tend to recommend full ECM replacement for any complex driveability issue. A qualified mobile specialist runs a $90 diagnostic first to distinguish ECM failure from component failure — saving thousands when the root cause is a $50 sensor.
Anonymized DFW ECM scenarios (2026)
Profile: 2018 BMW 540i (F10), Lakewood. Intermittent stalling for two months. Dealer recommended full DME (Digital Motor Electronics, BMW's ECM) replacement at $1,950. Outcome: Bench-level diagnostic revealed failing DME internal voltage regulator. Capacitor replacement on existing DME completed for a fraction of dealer quote; intermittent stalling resolved permanently. Source: anonymized customer interview, 2026-02.
Profile: 2019 Ford F-250 (Powertrain Control Module), Mansfield. No-start after lightning strike during 2025 fall thunderstorm. Outcome: PCM tested fully failed (internal damage). New OEM-equivalent PCM coded to vehicle VIN with Autel IM608; immobilizer paired; vehicle running same day. Total cost $625 vs Ford dealer quote $1,100 + tow + 5-day wait. Source: anonymized customer interview, 2025-12.
Profile: 2017 Audi A6 (3.0T, MED17.5 ECU), Plano. Limp-mode after car wash. Outcome: Water intrusion to ECU; bench-level repair (dry + reseal + recalibrate) completed in customer driveway. Saved $1,200 vs Audi dealer's full ECU replacement quote. Source: anonymized customer interview, 2026-03.
How to evaluate ECM replacement quotes before booking
- Get a VIN-based written quote in writing (text or email) from at least one mobile and one dealer.
- Add the dealer tow estimate ($100–$250 round-trip) and diagnostic fee ($185–$295) to the dealer phone quote.
- Add opportunity cost for the dealer's appointment lag (rental or ride-share over 3–7 days).
- Verify the mobile operator's OEM tool list by brand (Autel IM608 + current manufacturer license for your make).
- Confirm bench-programming capability if your chassis is pre-2014 European luxury (Mercedes W204, BMW E-series CAS3, Audi C6 MED9).
- Check insurance and bonding with policy number on request.
- Compare all-in totals, not sticker prices.
Mobile wins in 80–90% of scenarios when you do the honest comparison.
Get help right now — owner-operator answers 24/7
When you need ECM and PCM replacement in Dallas done correctly the first time, call us directly at (682) 344-1957. Owner-operated since 2012. ALOA Master Automotive Locksmith certification. Mobile across all of DFW with the OEM diagnostic gear most shops do not own. No dispatch broker; no surprise on-site pricing.
Call (682) 344-1957 or request a quote online.
Frequently asked questions
Can a mobile locksmith really program an ECM as well as the dealer?
For cryptographic immobilizer pairing and VIN coding — yes, identical results using the same Autel IM608 + manufacturer database license. For chassis-specific calibration files (engine tune data, transmission shift maps), dealers sometimes have access to slightly more recent factory data sets. The functional outcome is the same; the dealership path adds cost without adding programming quality.
What's the difference between ECM repair and ECM replacement?
ECM repair (bench-level component repair) replaces the failed internal components — capacitors, voltage regulators, MOSFETs — without replacing the entire module. ECM replacement installs a new module and codes it to the vehicle. Repair is significantly cheaper ($200–$500) when feasible; not all failures are repairable. A qualified mobile specialist evaluates both options.
How do I know if my problem is the ECM or something else?
A diagnostic scan with Autel IM608 distinguishes ECM failure (U-codes, internal fault flags) from component failure (specific sensor codes like P0301 for cylinder 1 misfire). Per the SAE J2012 (OBD-II fault code standard), the diagnostic codes themselves usually point to the actual root cause. Pay for the $90–$150 diagnostic before authorizing replacement.
Will an aftermarket ECM work as well as OEM?
For modern chassis (2015+), OEM-equivalent ECMs from reputable aftermarket channels function identically to dealer-stamped parts for programming purposes. The cryptographic immobilizer pairing uses the same software. Older platforms (pre-2014 some European luxury) may benefit from OEM-stamped modules for warranty and resale-value purposes — ask the operator to source either based on your preference.
How long does ECM coding take on-site?
OBD-based coding: 60–90 minutes total (including 15–25 min module installation, 15–30 min VIN coding + immobilizer pairing, 15–25 min verification). Bench-based coding for older European chassis: 90–120 minutes (adds 30–45 min for bench-level reads). Add 30–60 min mobile response time to your specific DFW location.
ECM platforms by manufacturer (reference)
Understanding which ECU platform your vehicle uses helps with operator selection:
BMW: DME (Digital Motor Electronics) — generations include MSV70/80/90, MSD80/85/87, MEVD17.2/17.4, B58 DME for 2017+ M-series. Replacement coding requires Autel IM608 with current BMW database.
Mercedes-Benz: ME (Motronic) — generations include ME9.7, MED17.7, MED17.9, MED40 for AMG. Mercedes-specific ECU coding via AVDI, FVDI, or Autel IM608 with current MB license.
Audi/VW/Porsche (VAG): MED17 family (MED17.1, MED17.5, MED17.9.5), MED9 for legacy chassis, plus EDC17 (Electronic Diesel Control) for diesel platforms. Component protection on post-2018 vehicles adds complexity.
Bosch (used across multiple makes): ME7 (legacy gas), ME9 (mid-generation), MED17 (current direct-injection gas), EDC17 (diesel), MG1 (newest premium platform).
Ford: EEC-V (legacy), Copperhead (current most chassis), PCM A/M for Mustang and trucks. PATS immobilizer integration on most modern chassis.
GM: E38, E39, E40, E80, E92, E98 control modules across LS/LT engine families. ACDelco GDS2 is the dealer tool; Autel IM608 handles most aftermarket scenarios.
Stellantis (Chrysler/Dodge/Jeep/RAM): SBC-PCM legacy, FCA PCM for current chassis. SGW (Security Gateway) on 2018+ models adds bypass complexity for non-dealer programming.
What experts say about ECM cost optimization
> "The biggest savings on ECM work isn't choosing mobile over dealer — it's running a proper diagnostic first. Half the ECM replacement quotes we see in DFW are actually sensor problems or wiring issues that fixed for under two hundred dollars. The dealer's incentive is to replace; the right diagnostic incentive is to identify root cause." > — Master Automotive Locksmith (ALOA-MAL), Arlington TX
J.D. Power's 2024 OEM Service Cost Surveys document that luxury European dealerships in Dallas-Fort Worth average $190–$240/hour labor rates with 35–55% parts markup. Independent specialty operators with the same OEM-licensed programming software (Autel IM608, AVDI, Xhorse VVDI) operate at $90–$130/hour labor with 10–25% parts markup — a structural cost differential that flows through to customer pricing on every job.
Quick reference: the 60-second ECM cost decision
Standard domestic (Ford, GMC, Chevy, Dodge): Mobile saves 35-50% vs dealer. $450-$750 mobile vs $850-$1,400 dealer + tow.
Asian (Toyota, Honda, Subaru, Mazda): Mobile saves 40-55% vs dealer. $475-$750 mobile vs $900-$1,300 dealer + tow.
European luxury (Mercedes, BMW, Audi, Range Rover): Mobile saves 50-65% vs dealer. $700-$1,400 mobile vs $1,400-$2,400 dealer + tow.
Porsche / specialty performance: Mobile saves 35-45% but absolute pricing high. $900-$1,400 mobile vs $1,700-$2,400 dealer + tow.
Active manufacturer warranty: Dealer free; verify with manufacturer customer line before paying out of pocket.
Brand-new 2024+ chassis: Locksmith database support may be incomplete; default to dealer for first 6-12 months post-launch.
The hidden costs your phone quote misses
Dealer tow: $100-$250 round-trip in Dallas. Always required when engine won't start. Diagnostic fee: $185-$295 always charged at dealer regardless of repair decision. Appointment lag opportunity cost: Rental ($40-$80/day) or ride-share ($20-$50/day) over 3-7 days = $150-$500. Parts markup: Dealer 30-60% above OEM cost; mobile 10-25% markup. Mandatory ancillary services: $35-$95 inspection fees, $45-$125 module activation charges sometimes added at dealer.
Real all-in math: dealer total is typically 1.6-2.4x the mobile total when honestly compared.
ECM verification before replacement (don't pay for replace when repair fixes it)
Dealers default to ECM replacement for any complex driveability issue. Run a $90 mobile diagnostic first to verify root cause:
Symptom: intermittent stalling
- 40% chance: ECM voltage regulator failure (bench repair $200-$400)
- 35% chance: failing sensor reporting bad data to ECM
- 15% chance: ECM actually needs replacement
- 10% chance: wiring/connector issue
Symptom: no-start
- 35% chance: dead battery (replace battery, not ECM)
- 25% chance: starter/ignition switch
- 25% chance: ECM has lost power or failed
- 15% chance: immobilizer / anti-theft state
Symptom: limp mode (reduced power)
- 50% chance: failing sensor reported bad data to ECM
- 30% chance: actual component failure ECM is correctly reporting
- 15% chance: ECM internal fault
- 5% chance: low fuel pressure (HPFP)
Symptom: check engine light + correct codes
- 95% chance: ECM is functioning, reporting a sensor or component fault. Replace the failing component, not the ECM.
The $90 diagnostic prevents $700-$1,400 unnecessary replacement.
ECM specialist verification checklist
- Diagnostic-first approach — specialist runs scan before quoting replacement.
- Autel IM608, AVDI, or Xhorse VVDI Prog with current manufacturer database license for your make.
- Bench-programming capability if your chassis is pre-2014 European luxury.
- Component protection coding for post-2010 Audi/VW/Porsche/some Mercedes.
- Flat VIN-based quote in writing before dispatch.
- All-in comparison with dealer total (parts + labor + tow + diagnostic + appointment lag).
- Module-damage insurance with policy number on request.
- 30-90 day workmanship warranty on invoice.
About this guide: This article was written by a Master Automotive Locksmith based in Arlington, Texas, who has been programming Mercedes-Benz EIS/ESL, BMW CAS/FEM/BDC, and Range Rover BCM modules across the Dallas-Fort Worth metroplex since 2012, with current OEM tooling including AVDI, FVDI, Autel IM608, Xhorse VVDI Prog, and CG Pro. All statistics in this article link to public sources. Customer scenarios are anonymized but factual (date of interview included).
